SPECIFICATIONS

Brand Name: AFAX

Cable Length: Customizable,default 5m

Certificates/Compliance: CE/EN 61851-1/-23

Charger Type: GBT20234 / EN62196 / EN61851- 1, JEVSG 105/CHADEMO

Current: 20A-133A

Exhibition: 7-inch LCD Touch Screen Display

Height: 780mm

High-concerned chemical: None

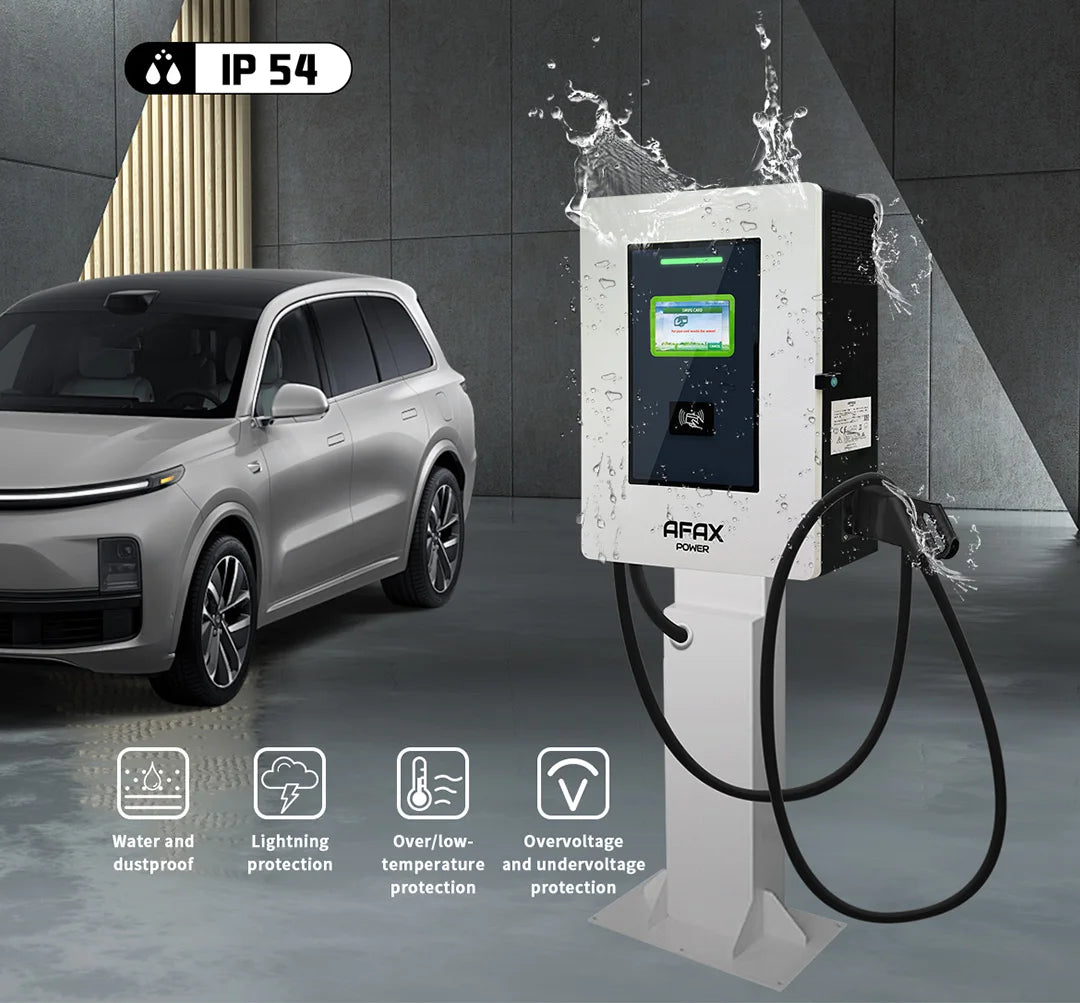

IP Rating: IP54

Manufacturer Part Number: CCS/GBT/CHAdeMo/Three phase

Material: Sheet Metal

Network interfaces: Ethernet (standard); Wi-Fi,4G (optional)

Number of phases/wires: 3ph/L1,L2,L3,PE,N

OCPP protocol: OCPP1.6/0CPP2.0

Operating Temperature: -20 ℃ - 50 ℃ (derated at 50 ℃)

Origin: Mainland China

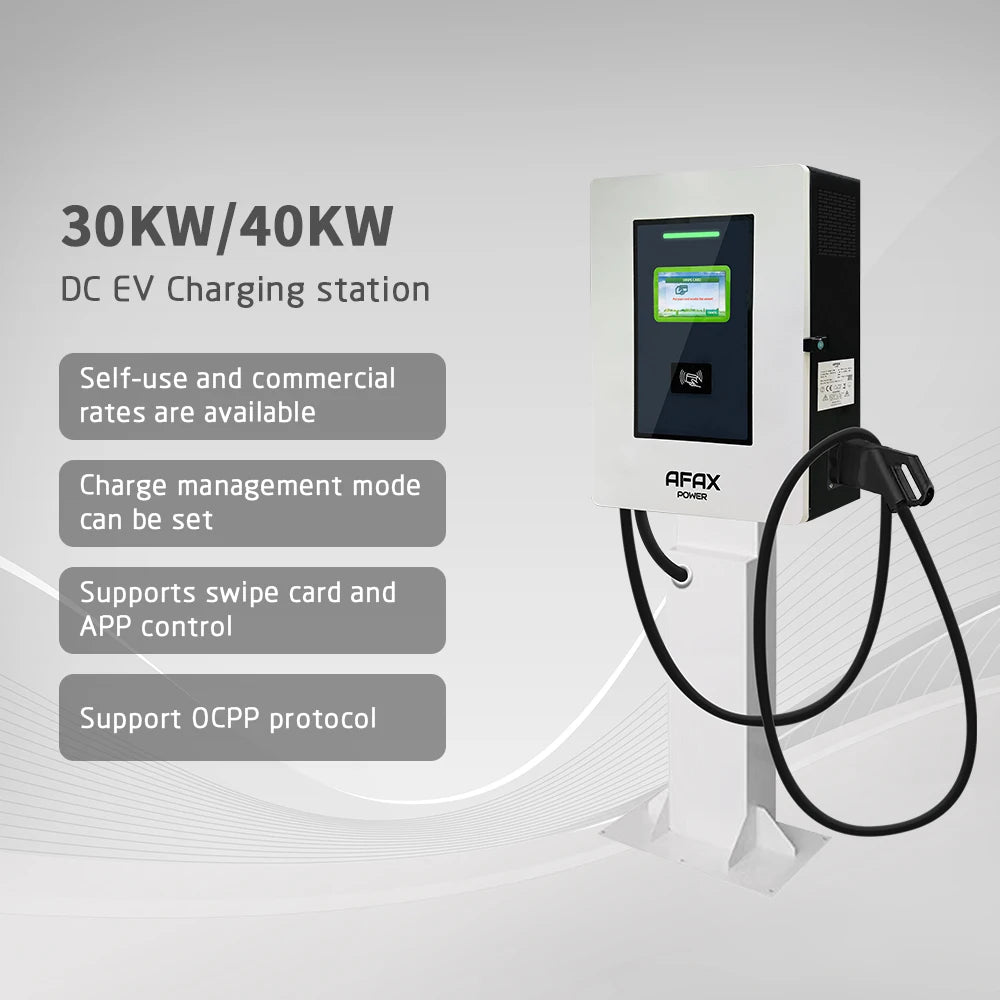

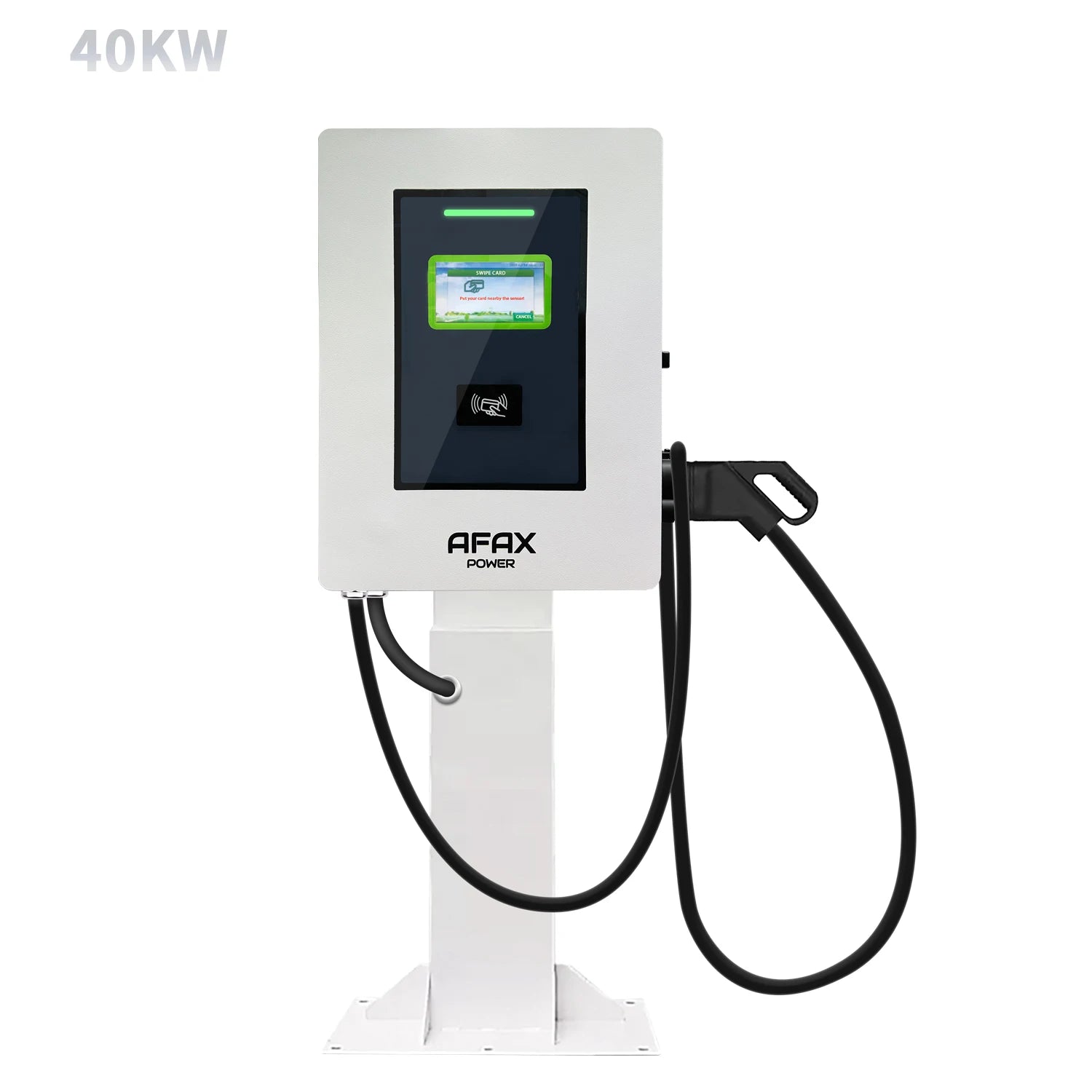

Power: 7/15/20/30/40KW,default 30KW

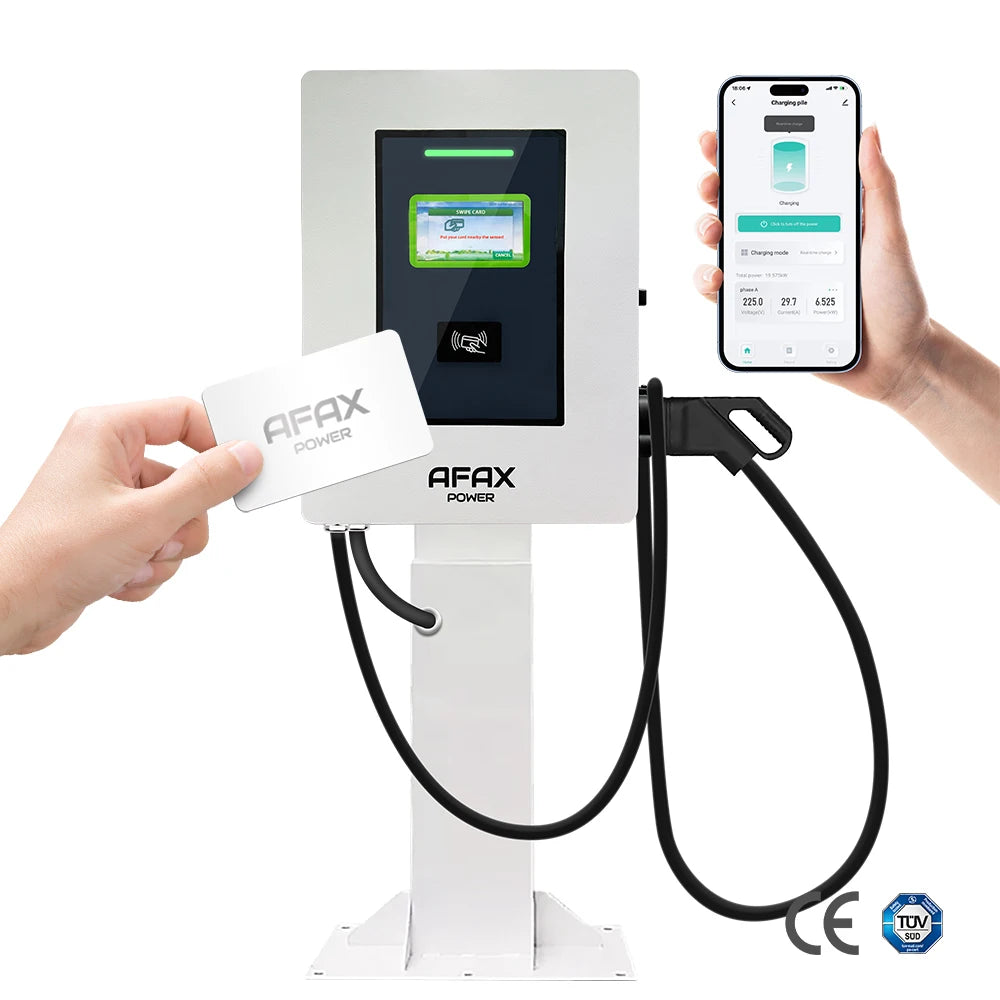

User authentication: NFC Card / Online Payment System

Voltage: 260V-530V AC

Width: 270mm,560mm

length: 850mm

weight: 75KG
